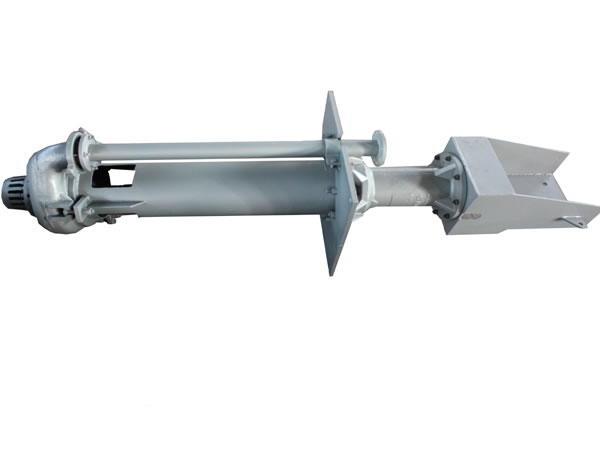

立式渣漿泵(SP型)
本公司專業技術人員幫您免費選型 服務熱線:18232962233 微信同步
我們將耐心為您服務!歡迎您來電咨詢!

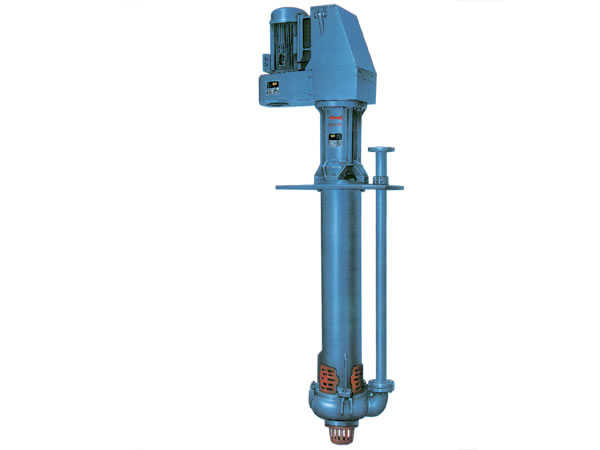

SP型液下泵為立式離心渣漿泵。適于輸送腐蝕性、粗顆粒、高濃度渣漿。泵一般侵入池內或坑內工作。不需要任何軸封和軸封水,在吸入量不足的工況下也能正常工作。SP型過流部件及軸采用金屬材質,適于輸送腐蝕性渣漿。SP型液下泵廣泛用于冶金、煤炭、礦山、煤炭、電力、建材等部門。

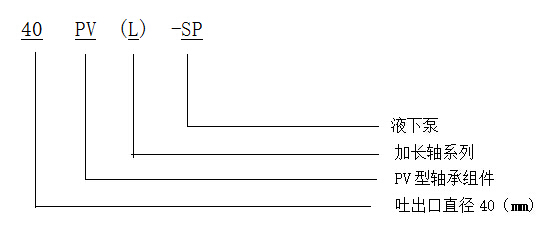

型號意義:例如
型 號
TYPE | 流 量 Capacity Q (m3/h) | 揚 程 Head H (m) | 轉 速 Speed n (r/min) | 必需汽 蝕余量 NPSHr (m) | 效率 Effici Ency η (%) | 軸功率 Shaft Power P (Kw) | 配用電機 Matingmotor | 重量 Weight (Kg) | 泵外形尺寸 (長x寬x高) Overall dimensions LxWxH (mm) | 口 徑 Dia.ofpump (mm) | ||||
功率 Power (Kw) | 規格 Specif | |||||||||||||
吸入 Inlet | 吐出 Outlet | |||||||||||||
40PV-SP | 7.56 14.76 18.00 | 5.5 5 4 | 1000 |
| 30 38 35 | 0.38 0.53 0.56 | 1.1 | Y90S-4 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 9.00 17.64 24.12 | 8.2 7 6 | 1200 |
| 30 38 35 | 0.67 0.88 1.10 | 1.1
1.5 | Y90S-4
Y90L-4 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 10.08 20.52 27.72 | 11 9 8 | 1400 |
| 30 38 35 | 1.00 1.3 1.7 | 2.2
3 | Y100L1-4
Y100L2-4 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 10.44 20.88 28.08 | 11.5 9.5 8.5 | 1420 |
| 30 38 35 | 1.1 1.4 1.8 | 2.2
3 | Y100L1-4
Y100L2-4 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 11.16 21.96 29.52 | 12.5 10.6 9 | 1500 |
| 30 38 35 | 1.27 1.7 2.1 | 3
4 | Y100L1-4
Y112M-4 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 11.88 23.40 30.96 | 14.5 12.5 10.5 | 1600 |
| 30 38 35 | 1.56 2.1 2.5 | 3
4 | Y100L2-4
Y112M-4 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 12.60 24.84 26.64 | 16.5 14 11.5 | 1700 |
| 30 38 35 | 2.1 2.5 2.8 | 4
5.5 | Y112M-4
Y132S-4 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 12.96 26.64 35.28 | 18.5 15.5 13 | 1800 |
| 30 38 35 | 2.2 2.9 3.6 | 4
5.5 | Y112M-2
Y132S1-2 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 14.04 27.72 37.80 | 20.5 17.5 15 | 1900 |
| 30 38 35 | 2.6 3.5 4.4 | 5.5
7.5 | Y132S1-2
Y132S2-2 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 14.4 29.16 39.24 | 22.5 19.5 16.5 | 2000 |
| 30 38 35 | 2.9 4.1 5.03 | 5.5
7.5 | Y132S1-2
Y132S2-2 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 15.48 30.60 41.40 | 25 21.5 18.5 | 2100 |
| 30 38 35 | 3.5 4.7 6 | 7.5
11 | Y132S2-2
Y160M1-2 | 285
300 | 960x500x2013 | 81 | 40 | ||
40PV-SP | 16.20 32.4 43.92 | 27 23.5 20 | 2200 |
| 30 38 35 | 4 5.5 6.8 | 7.5
11 | Y132S2-2
Y160M1-2 | 285
300 | 960x500x2013 | 81 | 40 | ||
65QV-SP | 19.08 44.64 48.6 | 6.8 5.9 5.1 | 700 |
| 40 51 50 | 0.88 1.4 1.35 | 3 | Y132S-6 | 432
500 | 1193x680x2590 | 104 | 65 | ||
65QV-SP | 19.8 41.4 49.68 | 7 6 5.4 | 710 |
| 40 51 50 | 0.96 1.3 1.5 | 2.2
3 | Y132S-8B5
Y132M-8B5 | 432
500 | 1193x680x2590 | 104 | 65 | ||
65QV-SP | 21.6 46.08 55.58 | 8.8 7.4 6.8 | 800 |
| 40 51 50 | 1.3 1.8 2.1 | 3
4 | Y132S-6
Y132M1-6 | 432
500 | 1193x680x2590 | 104 | 65 | ||
65QV-SP | 24.84 52.2 61.56 | 11 9.4 8.5 | 900 |
| 40 51 50 | 1.8 2.6 2.85 | 4
5.5 | Y132M1-6
Y132M2-6 | 432
500 | 1193x680x2590 | 104 | 65 | ||
65QV-SP | 26.64 55.8 65.52 | 12.5 10.5 9.5 | 960 |
| 40 51 50 | 2 3.1 3.4 | 4 5.5 7.5 | Y132M1-6B5 Y132M2-6B5 Y160M-6B5 | 285
300 | 1193x680x2590 | 104 | 65 | ||
65QV-SP | 29.52 63.36 75.60 | 16.5 13.7 12.5 | 1100 |
| 45 51 50 | 2.9 4.6 5.1 | 7.5
11 | Y132M-4
Y160M-4 | 432
500 | 1193x680x2590 | 104 | 65 | ||
65QV-SP | 32.4 69.84 82.08 | 19.5 16.4 15 | 1200 |
| 45 51 50 | 3.8 6.1 6.7 | 7.5 11 15 | Y132M-4 Y160M-4 Y160L-4 | 432
500 | 1193x680x2590 | 104 | 65 | ||
65QV-SP | 45 75.24 88.2 | 22.5 19.4 17.7 | 1300 |
| 45 51 50 | 6.1 7.8 8.5 | 11
15 | Y160M-4
Y160L-4 | 432
500 | 1193x680x2590 | 104 | 65 |
型 號
TYPE | 流 量 Capacity Q (m3/h) | 揚 程 Head H (m) | 轉 速 Speed n (r/min) | 必需汽 蝕余量 NPSHr (m) | 效率 Effici Ency η (%) | 軸功率 Shaft Power P (Kw) | 配用電機 Matingmotor | 重量 Weight (Kg) | 泵外形尺寸 (長x寬x高) Overall dimensions LxWxH (mm) | 口 徑 Dia.ofpump (mm) | ||||
功率 Power (Kw) | 規格 Specif | |||||||||||||
吸入 Inlet | 吐出 Outlet | |||||||||||||
65QV-SP | 48.6 81 95.4 | 25.5 22.4 20.5 | 1400 |
| 45 51 50 | 7.5 9.7 10.7 | 11 15 18.5 | Y160M-4 Y160L-4 Y180M-4 | 432
500 | 1193x680x2590 | 104 | 65 | ||
65QV-SP | 50.76 84.6 100.08 | 28.3 24.5 22.5 | 1470 |
| 45 51 50 | 8.7 11.1 12.3 | 18.5
22 | Y180M-4B5
180L-4B5 | 432
500 | 1193x680x2590 | 104 | 65 | ||
65QV-SP | 52.2 86.4 106.2 | 29.5 25.5 23.5 | 1500 |
| 45 51 50 | 9.3 11.8 13.6 | 15 18.5 22 | Y160L-4 Y180M-4 Y180L-4 | 432
500 | 1193x680x2590 | 104 | 65 | ||
100RV-SP | 41.4 90 111.6 | 6.3 5.5 5 | 500 |
| 40 55 56 | 1.8 2.4 2.7 | 3 4 5.5 | Y132M-8 Y160M1-8 Y160M2-8 | 867
920 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 43.2 104.4 133.2 | 9 8.1 7.5 | 600 |
| 40 55 56 | 2.7 4.2 4.8 | 5.5 7.5 11 | Y160M2-8 Y160L-8 Y180L-8 | 285
300 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 57.6 124.2 154.8 | 12.2 11 10.2 | 700 |
| 40 55 56 | 4.8 6.7 7.7 | 11
15 | Y160L-8
Y180L-8 | 285
300 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 61.2 129.6 162 | 13.4 12 11.2 | 730 |
| 40 55 56 | 5.6 7.7 8.8 | 11 15 18.5 | Y180L-8B5 Y200L-8B5 Y225S-8B5 | 285
300 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 64.8 142.2 174.6 | 16 14.4 13.3 | 800 |
| 40 55 56 | 7 10.1 11.3 | 15
18.5 | Y160L-6
Y200L1-6 | 285
300 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 68.4 151.2 187.2 | 18 16.4 15 | 850 |
| 40 55 56 | 8.4 12.3 13.6 | 15 18.5 22 | Y160L-6 Y200L1-6 Y200L2-6 | 285
300 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 75.6 160.2 194.4 | 20.3 18 16.7 | 900 |
| 40 55 56 | 10.4 14.3 15.8 | 18.5 22 30 | Y200L1-6 Y200L2-6 Y225M-6 | 285
300 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 81 174.6 214.2 | 23.8 21.5 20 | 980 |
| 40 55 56 | 13 18.6 20.8 | 22 30 37 | Y220L2-6 Y225M-6 Y250M-6 | 285
300 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 82.8 176.4 217.44 | 25 22.5 20.7 | 1000 |
| 40 55 56 | 14.1 19.6 21.9 | 22 30 37 | Y180L-4 Y220L-4 Y225S-4 | 285
300 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 86.4 185.4 230.4 | 27.5 24.5 22.5 | 1050 |
| 40 55 56 | 16.2 22.5 25.2 | 30 37 45 | Y200L-4 Y225S-4 Y225M-4 | 432
500 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 90 194.4 240.48 | 30.3 27 25 | 1100 |
| 40 55 56 | 18.5 25.9 29.2 | 30 37 45 | Y200L-4 Y225S-4 Y225M-4 | 432
500 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 97.2 205.2 243 | 33 29.5 27.4 | 1150 |
| 40 55 56 | 21.8 29.9 33.3 | 30
45 | Y200L-4
Y225M-4 | 432
500 | 1558x870x3303 | 175 | 100 | ||
100RV-SP | 100.8 212.4 262.8 | 35.8 32.1 29.5 | 1200 |
| 40 55 56 | 24.5 33.7 37.7 | 37
45 | Y225S-4
Y225M-4 | 432
500 | 1558x870x3303 | 175 | 100 | ||
150SV-SP | 118.8 208.8 288 | 8.1 8 6.5 | 500 |
| 45 53 53 | 6.4 8.5 9.6 | 11
15 | Y180L-8
Y200L-8 | 285
300 | 1870x1100x3986 |
| 150 | ||
150SV-SP | 133.2 223.2 316.8 | 10.6 9.6 8 | 550 |
| 45 53 53 | 8.5 11 13 | 15 18.5 22 | Y200L-8 Y225S-8 Y225M-8 | 432
500 | 1870x1100x3986 |
| 150 | ||
150SV-SP | 140.4 244.8 342 | 12.7 11.4 9.7 | 600 |
| 45 53 53 | 10.8 14.3 17 | 22
30 | Y225M-8
Y250M-8 | 432
500 | 1870x1100x3986 |
| 150 | ||
150SV-SP | 154.8 270 367.2 | 15 13.4 11.4 | 650 |
| 45 53 53 | 13.7 18.6 21.5 | 22 30 37 | Y225M-8 Y250M-8 Y280S-8 | 432
500 | 1870x1100x3986 |
| 150 |
